BURASCHI

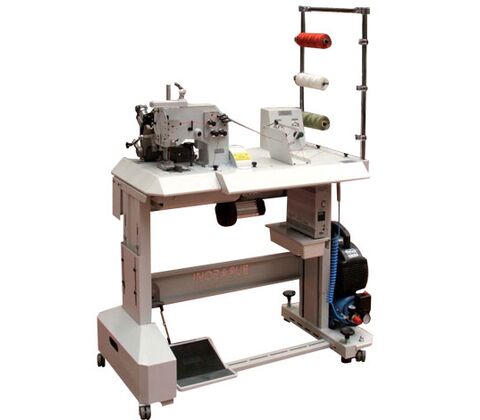

The following are the main technical characteristic of the RP7BR PNEUMATIC model.

SEWING CAPACITY
Sewing thickness of 25 mm. is easily achieved, for example net with No5 knot can be joined with a 18/20 mm. rope. For the aquaculture field, for example, a 22 mm. rope can be sewn to 210/120 net without knots. Sewing area is at the same level of table for a better ergonomic operator position and has no more entangle corner for the nets.

OVERSIZING OF SEWING PARTS
Our RP7BR PNEUMATIC model is suitable for thicker nets, therefore sewing parts and all mechanical components are appropriately sized to withstand the pressure. Key components have been completely redesigned and are manufactured by machining and not by casting.

PRESSURE FOOT
A novelty of this machine is the pneumatic pressure foot that keeps a constant pressure on the material that is being sewn. Its lifting is bigger in order to facilitate the entrance and exit of the material.

PNEUMATIC SERVO ASSISTANCE
As already implemented on RP5 BR Pneumatic, lifting of the pressure foot is controlled by an efficient and solid cylinder.

DOUBLE TRACTION PULLER
An important part of this information sheet must be devoted to the puller, like the majority of the others installed on our net machines, are accessories studied, built and patented especially by us for our machines, therefore they are not "standard" accessories found on the market and then adapted to the specific needs of the machine on which they have to be installed. Having said this, we herewith confirm that the puller installed on this machine is of the type whith both upper and lower drive roller, with a very powerful traction that suits the thicker nets this machine has to sew. The puller is synchronised with the length of the stitch and presses materials to be sewn with an pnaumatic cylinder 50 mm. in diameter. The main advantage is guaranteeing a constant pressure of the material to be sewn. This constant pressure is also guaranteed when different levels pass through the puller rollers very easily and without hesitation or blocking that would have a negative effect on machine operation.

ELECTRONIC MOTOR
The new RP7BR PNEUMATIC is equipped with a very strong and pratical EFKA DC series electronic motor. This electronic motor, on the contrary to traditional motors, enables:
- Sewing speed to be adjusted with the pedal;
- The needle to be stopped in the pre-set position;
- The suitable speed for each operation to be chosen and programmed on the display;
- Better operation given the electronic motor has superior construction characteristics compared to traditional motors.

These are a few of the main characteristics of the new RP7BR PNEUMATIC model, version that is presented to the market after around 20 years of experience gained at our customer's. We are constantly trying to provide you with more up-to-date machines that meet our Customer's needs.
